| FRAMESET |
| Frame |

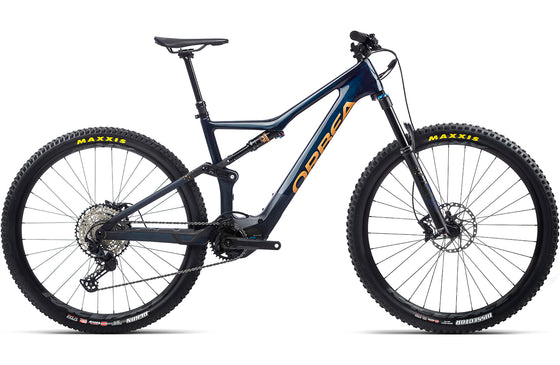

Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148 |
| Shock |
Fox Float DPS Performance 3-Position Evol custom tune 210x55mm |
| Fork |
Fox 34 Float Performance 140 3-Position QR15x110 |
| Headset |
Acros Alloy 1-1/8 - 1-1/2" Integrated |
| DRIVETRAIN |
| Chainring |
e*thirteen e*spec Direct Mount 32T Boost |
| Crank |
e*thirteen Plus Alu |
| Shifters |
Shimano SLX M7100 I-Spec EV |
| Cassette |
Shimano CS-M7100 10-51t 12-Speed |
| Rear Derailleur |
Shimano SLX M7100 SGS Shadow Plus |
| Chain |
Shimano M6100 |
| Chainguide |
Orbea Rise chainguide |
| MOTOR & BATTERY |
| Motor |
Shimano EP8-RS |
| Battery |
Orbea RS Internal 360Wh |
| Display |
Shimano EW-EN100 Junction |
| Charger |
Orbea RS Charger (36V-2A) |
| Remote |
Shimano E7000 switch unit for assist |
| COCKPIT |
| Handlebar |
OC1 35mm 12mm Rise 780mm |
| Stem |
OC1 3D Forged 35mm interface 7º |
| BRAKES |
| Brakes |
Shimano M6100 Hydraulic Disc |
| Rotors |
180mm Front /180mm Rear |
| WHEELS |
| Wheels |
Race Face AR 30c Tubeless Ready |
| Tyres |
Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR |
| COMPONENTS |
| Seatpost |
OC Mountain Control MC20, 31.6mm, Dropper |
| Dropper Post Remote |
Shimano SL-MT500 I-Spec EV |
| Saddle |
Fizik Taiga S-alloy rail |
