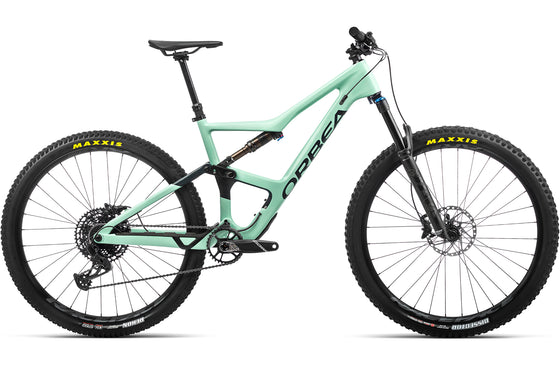

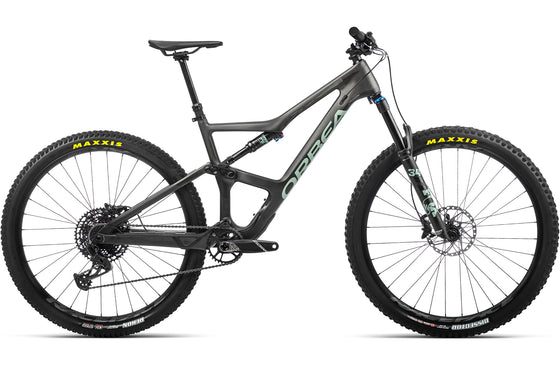

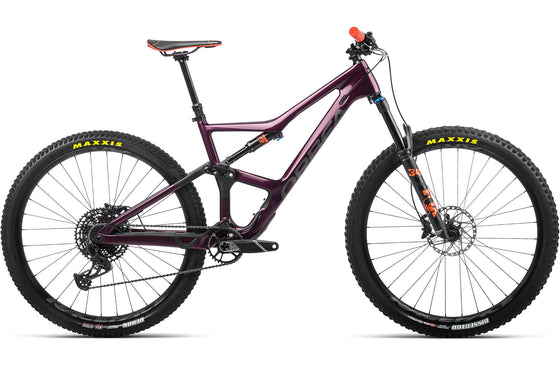

2023 ORBEA OCCAM M30-EAGLE - OMR Carbon - SRAM GX Eagle Lunar (N259) Trail MTB
2023 ORBEA OCCAM M30-EAGLE - OMR Carbon - SRAM GX Eagle Lunar (N259) Trail MTB
2023 ORBEA OCCAM M30-EAGLE - OMR Carbon - SRAM GX Eagle Lunar (N259) Trail MTB
50% off
2023 ORBEA OCCAM M30-EAGLE - OMR Carbon - SRAM GX Eagle Lunar (N259) Trail MTB
2023 ORBEA OCCAM M30-EAGLE - OMR Carbon - SRAM GX Eagle Lunar (N259) Trail MTB
2023 ORBEA OCCAM M30-EAGLE - OMR Carbon - SRAM GX Eagle Lunar (N259) Trail MTB

2023 ORBEA OCCAM M30-EAGLE - OMR Carbon - SRAM GX Eagle Lunar (N259) Trail MTB

SGD $3,755
Tax included.
Size
Color
Ice Green-Jade Green Carbon
Metallic Mulberry-Black
Infinity Green Carbon
FRAMESET
Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Shock Fox Float DPS Performance 3-Position Evol custom tune 210x50mm
Fork Fox 34 Float Performance 140 3-Position QR15x110
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
DRIVETRAIN
Crankset SRAM Descendant 6K Eagle Dub Boost 32t
Shifters SRAM NX Eagle
Cassette SRAM PG-1230 Eagle 11-50t 12-Speed
Rear Derailleur SRAM GX Eagle Lunar
Chain SRAM NX Eagle 12-Speed
Chainguide Orbea OC chainguide
COCKPIT
Handlebar OC Mountain Control MC30, Rise20, Width 800
Stem OC1 3D Forged 35mm interface 7º
BRAKES
Brakes Shimano M6100 Hydraulic Disc
WHEELS
Wheels Race Face AR 30c Tubeless Ready
Tyres Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
COMPONENTS
Specifications Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Seatpost OC Mountail Control MC20, 31.6mm, Dropper
Seatpost Lever Shimano SL-MT500 I-Spec EV
Saddle Fizik Taiga S-alloy rail
SIZE GUIDE — OCCAM OMR
Size Rider Height (cm) Rider Height (in)
S 150-165 59.1”-65.0”
M 160-175 63.0”-68.9”
L 170-185 66.9”-72.8”
XL 180-198 70.9”-78.0”
GEOMETRY — OCCAM OMR SIZES S–S-LT (mm / degrees)
Measurement S M L XL S-LT
1 - Seat Tube (C-T) 381 419 457 508 381
2 - Top Tube (EFF) 565 592 619 649 565
3 - Head Tube 95 105 120 140 95
4 - Chainstay 440 440 440 440 440
5 - BB Height 336 336 336 336 336
6 - BB Drop 35 35 35 35 32
7 - Wheelbase 1165 1194 1224 1259 1165
8 - Head Angle 66º 66º 66º 66º 65.5º
9 - Seat Angle 77º 77º 77º 77º 76.5º
10 - Standover 710 736 766 776 710
11 - Reach 425 450 474 500 425
12 - Stack 604 613 627 646 604
13 - Fork Length 547 547 547 547 547
14 - Rake 44 44 44 44 44
GEOMETRY — OCCAM OMR SIZES M-LT–XL-LT (mm / degrees)
Measurement M-LT L-LT XL-LT
1 - Seat Tube (C-T) 419 457 508
2 - Top Tube (EFF) 592 619 649
3 - Head Tube 105 120 140
4 - Chainstay 440 440 440
5 - BB Height 336 336 336
6 - BB Drop 32 32 32
7 - Wheelbase 1194 1224 1259
8 - Head Angle 65.5º 65.5º 65.5º
9 - Seat Angle 76.5º 76.5º 76.5º
10 - Standover 736 766 776
11 - Reach 450 474 500
12 - Stack 613 627 646
13 - Fork Length 547 547 547
14 - Rake 44 44 44

Specifications, colours and options are subject to change without prior notice.
