2022 Rallon M10 - Race Carbon - SRAM GX Eagle (M263) Enduro MTB
50% off

2022 Rallon M10 - Race Carbon - SRAM GX Eagle (M263) Enduro MTB

SGD $5,210
Tax included.
Size
Color

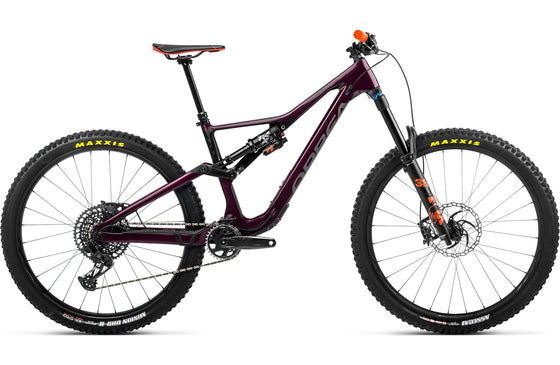

Metallic Mulberry-Black Mat

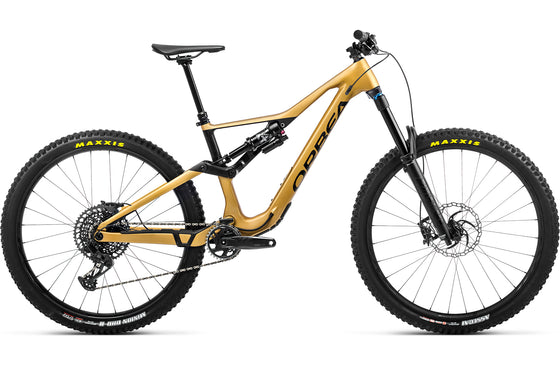

Golden Sand-Black

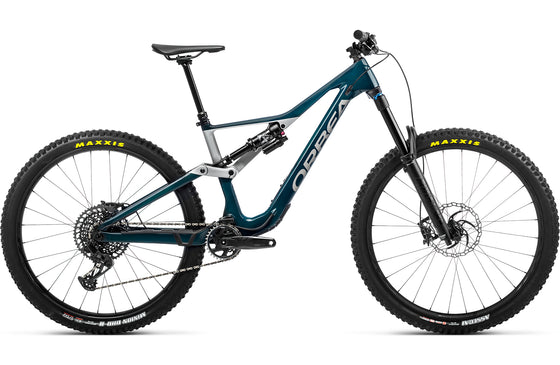

Jade Green Carbon-Stone Silver
AVAILABLE COLOURS
  • Metallic Mulberry (Gloss) - Black (Matt)

FRAMESET
Frame Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29” wheels. Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05
Shock Fox FLOAT X Performance 2-Position Evol LV custom tune 230x60mm
Fork Fox 38 Float Performance 170 Grip 3-Position QR15x110
Headset Acros Alloy 1-1/8 - 1-1/2” Integrated
DRIVETRAIN
Crankset SRAM GX Eagle Dub Lunar Boost 32t
Shifters SRAM GX Eagle Lunar
Cassette SRAM XG-1275 Eagle 10-52t 12-Speed
Rear Derailleur SRAM GX Eagle Lunar
Chain SRAM GX Eagle 12-Speed
COCKPIT
Handlebar Race Face Aeffect 35 20mm Rise 780mm
Stem Race Face Aeffect R 35mm interface
BRAKES
Brakes Shimano XT M8120 Hydraulic Disc
WHEELS
Wheels Race Face TURBINE-R30 TLR 15/110mm IS
Front Hub N/A
Tyre (Front) Maxxis Assegai 2.50” WT FB 120 TPI 3C Maxx Terra EXO+ TR
Tyre (Rear) Maxxis Minion DHR II 2.40” WT FB 120 TPI 3C Maxx Terra Exo+ TR
COMPONENTS
Seatpost OC MC20 Mountain Control Dropper, 31.6mm
Saddle Fizik Taiga S-alloy rail
Chainguide e*thirteen CL52 30-36t black
Storage Accessories Containers
Tools OC axle lever (Hex 6 & valve core removal) + OC Multitool (Hex 2, 3, 4 & 5)

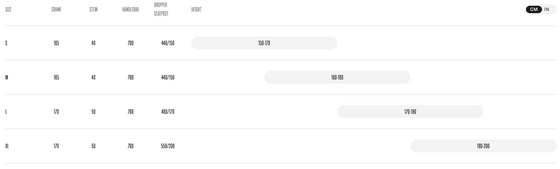

SIZING
Size Crank Stem Handlebar Dropper Seatpost
S 165 40 780 440/150
M 165 40 780 440/150
L 170 50 780 480/170
XL 170 50 780 550/200
SIZE GUIDE — RALLON
Size Rider Height (cm) Rider Height (in)
S 150-170 59.1”-66.9”
M 160-180 63.0”-70.9”
L 170-190 66.9”-74.8”
XL 180-200 70.9”-78.7”

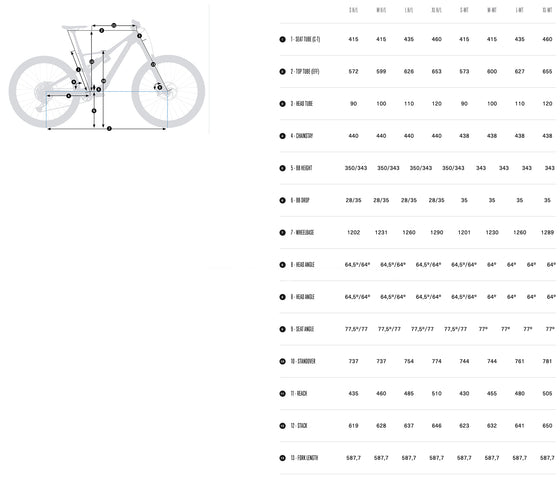

GEOMETRY — SIZES S–XL (mm / degrees)
Measurement S M L XL
1 - Seat Tube (C-T) 415 415 435 460
2 - Top Tube (EFF) 572 599 626 653
3 - Head Tube 90 100 110 120
4 - Chainstay 440 440 440 440
5 - BB Height 350/343 350/343 350/343 350/343
6 - BB Drop 28/35 28/35 28/35 28/35
7 - Wheelbase 1202 1231 1260 1290
8 - Head Angle 64.5º/64º 64.5º/64º 64.5º/64º 64.5º/64º
9 - Seat Angle 77.5º/77º 77.5º/77º 77.5º/77º 77.5º/77º
10 - Standover 737 737 754 774
11 - Reach 435 460 485 510
12 - Stack 619 628 637 646
13 - Fork Length 583.7 583.7 583.7 583.7
GEOMETRY — MULLET SIZES S–XL (mm / degrees)
Measurement S-Mullet M-Mullet L-Mullet XL-Mullet
1 - Seat Tube (C-T) 415 415 435 460
2 - Top Tube (EFF) 573 600 627 655
3 - Head Tube 90 100 110 120
4 - Chainstay 438 438 438 438
5 - BB Height 343 343 343 343
6 - BB Drop 35 35 35 35
7 - Wheelbase 1201 1230 1260 1289
8 - Head Angle 64º 64º 64º 64º
9 - Seat Angle 77º 77º 77º 77º
10 - Standover 744 744 761 781
11 - Reach 430 455 480 505
12 - Stack 623 632 641 650
13 - Fork Length 583.7 583.7 583.7 583.7
