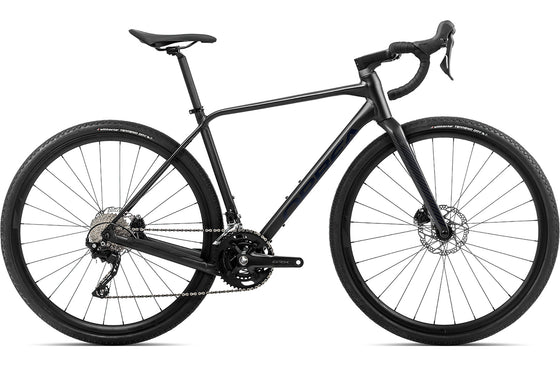

2022 Terra H40 - Shimano GRX RX400 (M105) Gravel Bike
2022 Terra H40 - Shimano GRX RX400 (M105) Gravel Bike
2022 Terra H40 - Shimano GRX RX400 (M105) Gravel Bike
35% off
2022 Terra H40 - Shimano GRX RX400 (M105) Gravel Bike
2022 Terra H40 - Shimano GRX RX400 (M105) Gravel Bike
2022 Terra H40 - Shimano GRX RX400 (M105) Gravel Bike

2022 Terra H40 - Shimano GRX RX400 (M105) Gravel Bike

SGD $2,534
Tax included.
Size
Color
Copper
Night Black
Mango

AVAILABLE COLOURS
  • Copper (Matt)
  • Mango (Gloss)

FRAMESET
Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1.5”, PF, Thru Axle 12x142mm rear, thread M12x2 P1, DT internal cable routing, 27.2mm seat tube, MMS system.
Fork Orbea Terra OMR carbon disc fork, full carbon steerer.
Headset FSA 1-1/2” Integrated Aluminium Cup
DRIVETRAIN
Crankset Shimano GRX RX600-10 30x46t
Shifters Shimano ST-RX400
Cassette Shimano Tiagra HG-500 11-34t 10-Speed
Rear Derailleur Shimano RD-RX400
Front Derailleur Shimano GRX RX400
Chain KMC X10
COCKPIT
Handlebar OC GR30-R Gravel Riser, Reach 70, Drop 125, Flare 12, Rise 15, w/Di2 hole
Handlebar Plugs Orbea Eva
Stem OC RP21 Road Performance ICR, -6º, IFC01 Computer mount interface
BRAKES
Brakes Shimano RX400 Hydraulic Disc
WHEELS
Wheels Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H
Rear Hub Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Front Hub Orbea Thru Axle 12x100mm M12x2 P1 Solid
Tyres Vittoria Terreno Dry Gravel G2.0 TNT 700x38c
COMPONENTS
Seatpost OC2 Carbon 27.2 Offset 20
Saddle Fizik Aliante R5
Mudguard N/A
Option — Orbea SKS 46S 700x45C + Pirelli Cinturato Velo 700x35C TLR
Kit Tubeless Orbea Kit tubeless (2 x 44mm brass valve + 10m x 23mm tape)

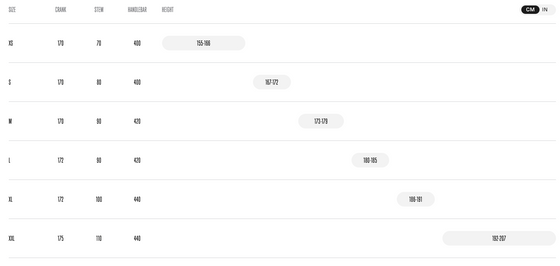

SIZING
Size Crank Stem Handlebar
XS 170 70 400
S 170 80 400
M 170 90 420
L 172 90 420
XL 172 100 440
XXL 175 110 440
SIZE GUIDE — TERRA HYDRO
Size Rider Height (cm) Rider Height (in)
XS 155-166 61.1”-65.4”
S 167-172 65.7”-67.7”
M 173-179 68.1”-70.5”
L 180-185 70.9”-72.8”
XL 186-191 73.2”-75.2”
XXL 192-207 75.6”-81.5”
GEOMETRY — SIZES XS–M (mm / degrees)
Measurement XS S M
1 - Seat Tube (C-T) 425 458 491
2 - Top Tube (EFF) 526 539 558
3 - Head Tube 110 131 152
4 - Chainstay 430 430 430
5 - BB Height (30-622 / 40-622) 263/278 263/278 263/278
6 - BB Drop 78 78 78
7 - Wheelbase 1020 1030 1039
8 - Head Angle 70º 70.5º 71º
9 - Seat Angle 74º 74º 73.5º
10 - Standover (30-622 / 40-622) 704/718 731/746 759/773
11 - Reach 375 382 389
12 - Stack 526 548 570
13 - Fork Length 390 390 390
Trail (30-622 / 40-622) 66/71 62/68 59/64
GEOMETRY — SIZES L–XXL (mm / degrees)
Measurement L XL XXL
1 - Seat Tube (C-T) 524 557 590
2 - Top Tube (EFF) 570 590 603
3 - Head Tube 178 199 220
4 - Chainstay 430 430 430
5 - BB Height (30-622 / 40-622) 265/280 265/280 265/280
6 - BB Drop 76 76 76
7 - Wheelbase 1054 1063 1072
8 - Head Angle 71º 71.5º 72º
9 - Seat Angle 73.5º 73º 73º
10 - Standover (30-622 / 40-622) 788/803 815/830 838/853
11 - Reach 395 402 409
12 - Stack 592 614 636
13 - Fork Length 390 390 390
Trail (30-622 / 40-622) 59/64 56/61 53/58

Terra Hydro — Orbea Terra hydroformed triple-butted aluminium gravel frame with a full-carbon Terra OMR fork. 12x142mm thru-axle rear, PF bottom bracket, DT internal cable routing, 27.2mm seat tube and MMS mounts.

Specifications, colours and options are subject to change without prior notice.
