Available for pre-order NOW

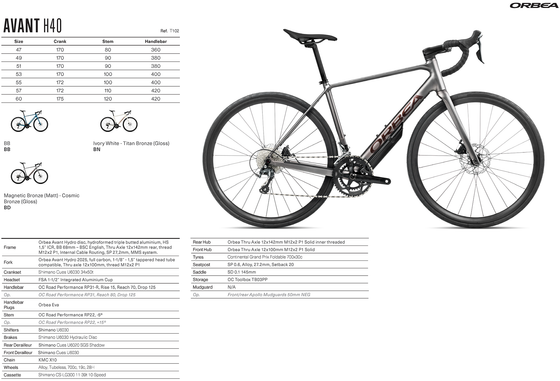

SPECIFICATIONS
FRAMESET
FRAME - Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
FORK - Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
STEERER TUBE - FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
CRANKSET - Shimano Cues U6030 34x50t
SHIFTERS - Shimano U6030
CASSETTE - Shimano CS-LG300 11-39t 10-Speed
REAR DERAILLEUR - Shimano Cues U6020 SGS Shadow
FRONT DERAILLEUR - Shimano Cues U6030
CHAIN - KMC X10
COCKPIT
HANDLEBAR - OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Options - OC Road Performance RP10-R Carbon, Rise 15, Reach 70,Drop125
STEM - OC Road Performance RP22, -5º
Options - OC Road Performance RP22, +15º
BRAKES
BRAKES - Shimano U6030 Hydraulic Disc
WHEELS
WHEELS - Alloy, Tubeless, 700c, 19c, 28H
TIRES - Continental Grand Prix Foldable 700x30c
FRONT WHEEL AXLE - Orbea Thru Axle 12x100mm M12x2 P1 Solid
REAR WHEEL AXLE - Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
COMPONENTS
SEATPOST - SP 0.6, Alloy, 27.2mm, Setback 20
SADDLE - SD 0.1 145mm
ACCESSORIES
HANDLEBAR TAPE - Orbea Eva
STORAGE - OC Toolbox TB03PP
MUDGUARD - N/A
Options - Front/rear Apollo Mudguards 50mm NEG
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
OPEN THE DOORS TO THE ROAD
A perfect companion, no matter how far the road takes you
Expect the unexpected every time you he![]()
ad out. With Avant's blend of speed and comfort, you could be out all day.
Comfort Is Key
No matter who’s riding, comfort is key. That’s why in our Avant evolution, we looked from every perspective to amplify it.
Ready For Whatever
Avant is a capable alloy road bike packed with advanced manufacturing and clever features.
Carbon Look
Each weld on the main frame is polished smooth, matching the aesthetics of a carbon frame.
Advanced Alloy
Controlling the shapes and wall thickness of our aluminium reduces weight, adds comfort and increases strength.
Forged Bottom Bracket
Routing the cables inside the frame means they are protected and take the most direct route, reducing friction.
Practical Solutions
Avant is packed with practical solutions to make every ride easier.
Multi-Mount System
Avant's mounting points fit any market-standard mudguard and fenders.
Service Box
Leave the saddle bag at home with the made-to-measure Service Box. There is space for necessities like tubes, CO2 cartridges, tire-levers and house keys.
