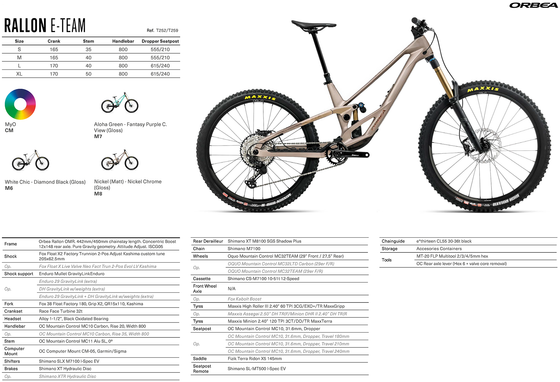

SPECIFICATIONS
FRAMESET
FRAME - Orbea Rallon OMR. 442mm/450mm chainstay length. Concentric Boost 12x148 rear axle. Pure Gravity geometry. Attitude Adjust. ISCG05
SHOCK - Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x62.5mm
Options - Fox Float X Live Valve Neo Factory Trunnion 2-Pos Evol LV Kashima custom tune 205x62.5mm
SHOCK SUPPORT - Enduro Mullet GravityLinkEnduro
Options - Enduro 29 GravityLink
- DH GravityLink w/weights (extra)
- Enduro Mullet GravityLink + DH GravityLink w/weights (extra)
FORK - Fox 38 Float Factory 180, Grip X2, QR15x110, Kashima
HEADSET - Alloy 1-1/2”, Black Oxidated Bearing
DRIVETRAIN
CRANKSET - Race Face Turbine 32t
SHIFTERS - Shimano SLX M7100 I-Spec EV
CASSETTE - Shimano CS-M7100 10-51t 12-Speed
REAR DERAILLEUR - Shimano XT M8100 SGS Shadow Plus
CHAIN - Shimano M7100
COCKPIT
HANDLEBAR - OC Mountain Control MC10 Carbon, Rise 20, Width 800
Options - OC Mountain Control MC10 Carbon, Rise 35, Width 800
STEM - OC Mountain Control MC11 Alu SL, 0º
COMPUTER MOUNT - OC Computer Mount CM-05, Garmin/Sigma
BRAKES
BRAKES - Shimano XT Hydraulic Disc
Options - Shimano XTR Hydraulic Disc
WHEELS
WHEELS - OQUO Mountain Control MC32TEAM (29” Front / 27.5" Rear)
Options - OQUO Mountain Control MC32TEAM (29er F/R)
- OQUO Mountain Control MC32LTD (29” Front / Rear)
TYRES - Maxxis High Roller III 2.40” 60 TPI 3CG/EXO+/TR MaxxGripp
Options - Maxxis Assegai 2.50” DH TR(F/Minion DHR II 2.40” DH TR(R
TYRES - Maxxis Minion 2.40” 120 TPI 3CT/DD/TR MaxxTerra
FRONT WHEEL AXLE - N/A
Options - Fox Kabolt Boost
COMPONENTS
SEATPOST - OC Mountain Control MC10, 31.6mm, Dropper
Options - OC Mountain Control MC10, 31.6mm, Dropper, Travel 180mm
- OC Mountain Control MC10, 31.6mm, Dropper, Travel 210mm
- OC Mountain Control MC10, 31.6mm, Dropper, Travel 240mm
SADDLE - Fizik Terra Ridon X5 145mm
SEATPOST REMOTE - Shimano SL-MT500 I-Spec EV
CHAINGUIDE - e*thirteen CL55 30-36t black
ACCESSORIES
STORAGE - Accessories Containers
TOOLS - MT-20 FLP Multitool 2/3/4/5mm hex
- OC Rear axle lever (Hex 6 + valve core removal)
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
GRAVITY BRED
When gravity calls, you can either fight against it or commit to the ride. Don’t be afraid to take things too far, push harder, and dare where others hesitate. Relentless evolution is the only way forward, because the finish line is just the beginning of something greater.
Rallon is a new breed of gravity bike, forged through years of development in the lab and on the race track. Its low center of gravity delivers unmatched stability, precision, and control at race speed, while supple suspension maximises traction and opens up new line choices. And because no two tracks—or riders—are the same, Rallon offers unparalleled adjustability, letting you fine-tune performance for every ride.
FOCUS ON FAST
Rallon begs for a challenge. With planted handling, unbeatable suspension performance, and a low center of gravity, it’s built to to take your riding to the next level.
Downhill Developed Suspension
Enduro riders demand DH-level suspension performance, to smooth the roughest tracks. For that reason Rallon uses the same active suspension kinematics, whether you choose the DH or Enduro version.
Gravity Kinematics
A 180mm fork matched with 170mm rear travel hits the sweet spot: enough for the biggest hits in the bike park or for running party laps on the craziest trails without dulling Rallon's eager handling.
Progressive Leverage Ratio - Predictable At All Times
A progressive leverage curve means the suspension stiffens as the bike moves deeper into its travel. This behavior is influenced by both the frame and the shock. The result? Better traction through small bump sensitivity, strong mid-stroke, and support to resist bottoming out on big hits.
Lower Pedal Kickback - A More Active Suspension
Less pedal kickback from our tuned kinematics means less chain interference - just pure traction and the smoothest suspension performance
Anti-Rise - Controlled Braking
The rear pivot location decouples braking forces fom the swingarm assembly, reducing braking feedback
Attitude Adjust: Adjustability Built In
With Attitude Adjust you can tune Rallon DH's kinematic, setting the progressivity at 22.5% or 27.5%.
22.5%: More Linear
This setting is for faster tracks, with added mid-stroke support and more responsive handling.
27.5%: More Progressive
This setting is ideal for tackling rough DH tracks with bigger drops
Focused on the Downs, Capable on the Climbs
Active suspension improves downhill performance but comes with a trade-off—it can absorb energy that would otherwise help you climb more efficiently. For long climbs, simply activating the shock’s lockout is a great solution for many riders.
Optimised for Electronic Shocks
On enduro stages, where short climbs appear mid-descent, there’s no time to stop and adjust your suspension. That’s where electronic shocks shine, automatically firming up for peddling and opening fully when it’s time to charge. From the start, we designed Rallon with this in mind. Its active suspension prioritises downhill performance, and for those who want the best of both worlds, an electronic shock is available through MyO.
Balance Built In
By keeping the center of gravity low, Rallon stays planted through steep chutes, tight switchbacks, and long stages—no matter how rough it gets.
GravityLink - Grounded By Design
GravityLink lowers the shock for a centered feel and rock-solid control on the toughest trails.
Low Standover Means Stability
With a lower shock, top tube, and bottom bracket, Rallon’s center of gravity drops—boosting stability and improving agility through fast corners and rough, off-camber lines.
Planted When Pushing Hard
The GravityLink grants the possibility to add weight to the BB, a behind-the-scenes hack of many World Cup mechanics. Adding more weight gives a plusher, more planted ride. Remove the weights for tracks that demand acceleration and quicker reactions.
Easy and Secure Weight Installation
Bolt the included 553g weight directly to the GravityLink

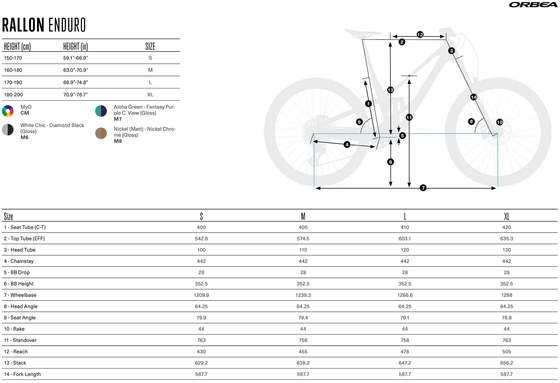

Race Ready Geometry
Rallon’s geometry has been shaped by years of downhill testing—and now it’s more adaptable than ever. With new levels of adjustability, you can fine-tune your setup to suit everything from steep chutes to fast, flowy stages.
Steep 'n' Deep: Lower Saddles Means Faster Bikes
Steep 'n' deep is now even deeper and matched with really low standover. More space to move your body means more control and more control means more speed.
Almost all riders will be able to fit a 240mm dropper, regardless of frame size. With its steep seat tube and deep insertion, Rallon has one of the lowest standovers around, meaning lots of space for your choice of long travel dropper posts. Get that saddle right out of the way when things get steep and deep.
Long travel droppers are the only way!
Of course, Rallon can still fit a bottle cage.
Frame Structure
Frame rigidity affects feel and grip. Our braced frame design allows us to add rigidity near the bottom bracket and have greater control of the frame structure.
Tuned Rigidity
By manipulating the carbon weave, we fine-tune frame flex without compromising strength—achieving ideal front and rear triangle stiffness. The result is increased grip and confidence on rough, off-camber terrain, and precious seconds saved when it matters most.
Tough By Design
Rallon brings together a stiff carbon frame, durable alloy linkage, and our GravityLink to form a structure made to handle the demands of modern Enduro—from rugged stages to full-throttle descents.
ADAPTABLE BY NATURE
More adjustability than ever—on and off the trail. From geometry to ride feel, Rallon is built to let you dial in the perfect setup for every ride.
On the Trail: Quick Adjustments For Each Track
Shave seconds easily. Match your setup to the track and your riding style with quick and simple adjustments—so you’re ready to push when it counts.
Headset Adjust
The headset angle is easily adjustable using the offset headset cup. The possibility of regulating +/-0.75º allows you to slip into a more slack position for steeper tracks or more aggressive runs.
Flip Chip
Using the flip chip, you can change the shock progressivity around 5% and swap between the High and Low positions. For more stability on fast tracks, pop into Low. For increased pedalling clearance, go High.
0.5º Head Angle Change and 7mm BB Drop Change.
Weighted Bottom Bracket
Install any of the included weights onto the GravityLink via its threaded holes to lower the center of gravity and improve composure.
Off the Trail: Configure your perfect Rallon
You know your riding style best, which is why there are plenty of options to suit you when setting up Rallon during the purchasing process.
29" Or Rock A Mullet
Rallon is available as either a mullet or full 29", and thanks to GravityLink, you can choose without affecting geometry.
Go 27.5" in the rear for a more playful, nimble ride, or opt for 29" wheels front and back for maximum speed and rollover.
Choose your preferred GravityLink setup via MyO, and if you want to switch later, simply add both GravityLinks.
Match Your Chainstay Length To Your Style
Pick your chainstay length: 442 mm for more playful riding, or 450 mm for stability at speed.
Choose Internal or External Headset Cabling
With Rallon, you can choose internal headset cable routing or not thanks to the new external cable ports.
BUILT FOR ABUSE
Rallon will get you all the way to the bottom with a quiet, reliably equipped frame and gravity standard components.
Quiet Frame Fundamentals
The only noise you want to hear is the crowd cheering, not rattling or distractions from your bike.
Improved Cable Routing
Cables are fully guided inside Rallon's frame, eliminating rattling and making it easy to change cables during maintenance.
Upgraded Frame Protection
Rallon is fitted with an upgraded, soft rubber chainstay protector. The updated design with hollow recesses absorbs chain hits better and makes less noise.
Gravity standard components
Every part is chosen for its strength and reliability, engineered to perform under the stresses of hard enduro riding.
Downhill Tough, Enduro Ready
OQUO's MC32 TEAM and LTD wheels keep Rallon on the right track. The alloy MC32-TEAM are the wheels FMD use for racing, while the carbon MC32-LTD offer a lighter package more suited to Enduro racing.
FOX FLOAT X NEO Electronic Shock
Those who demand the ultimate pedalling efficiency can opt for a FOX electronic shock. Adjusting the suspension from trail data every 1/70th of a second, these shocks can unleash Rallon's active suspension on the downhills, or stiffen it up for more efficient pedalling when needed.
DH and DD tyres
The toughest tyres for the roughest tracks. All models come with the strongest Maxxis DH and DD options to accompany you wherever you dare to go.
Hard hitting forks
Demanding downhill tracks require stiffer, more burly forks. Rallon counts on the benchmark FOX 38
Integral Orbea Elements
Fully Loaded Pivot
Rallon's Fully Loaded Pivot (FLP) includes a multitool with 2, 3, 4 and 5 hex keys held securely in place with a magnet while the rear axle holds a 6mm hex key for quick adjustments right at hand.
LOCKR
Enjoy the advantages of our updated LOCKR with easier access than ever. Store tools, lunch or even a jacket easily behind the water bottle mount ready for easy access.

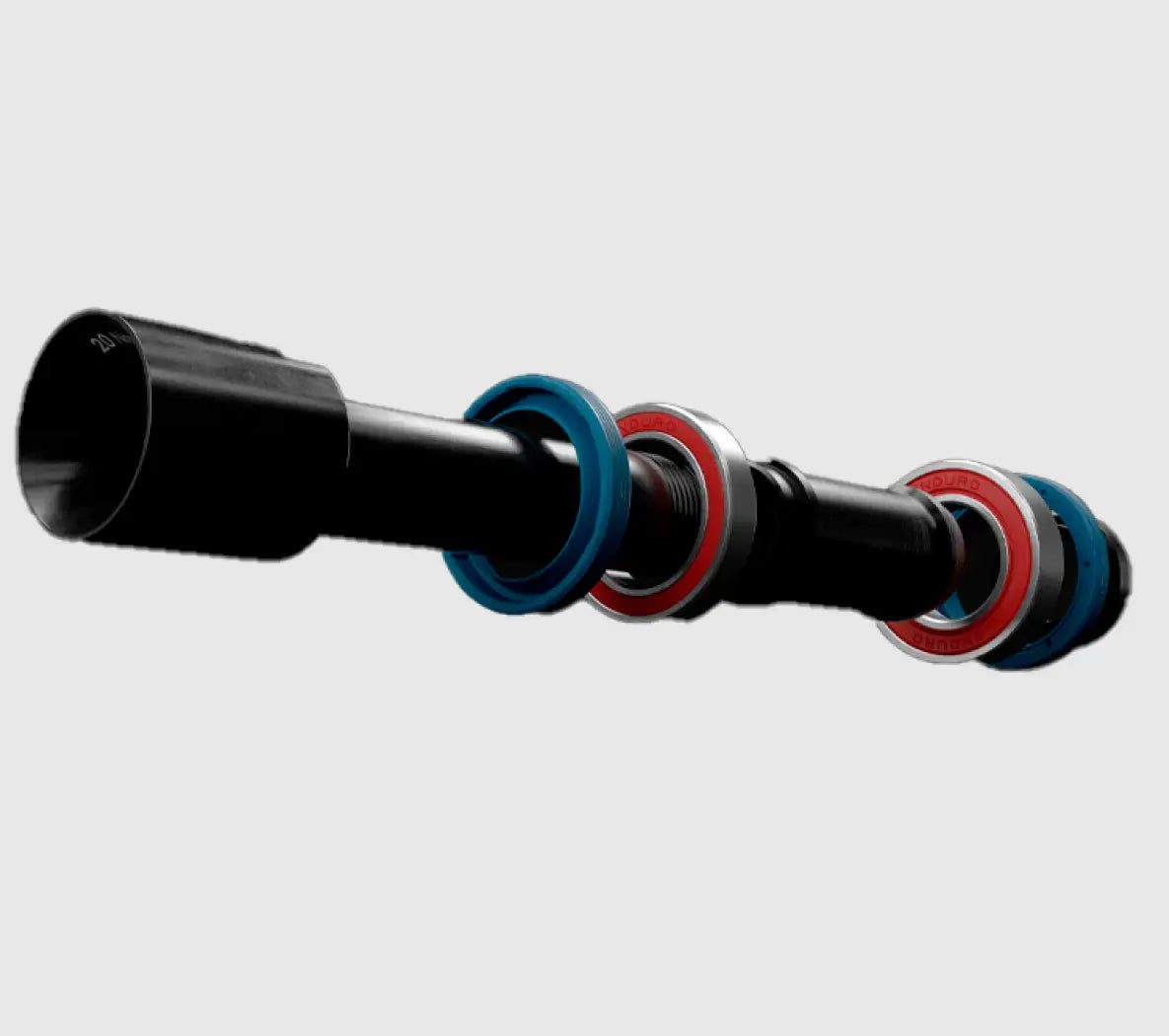

Fully Sealed Bearings
Bearings normally fail due to grime, not overload. We have worked hard to seal Rallon's main pivot points. Clean bearings last longer and keep the suspension working optimally when things get dirty.
Second Skin
Rallon is ready for a tough life and the replaceable vinyl protection keeps the paintwork looking like new for longer.
