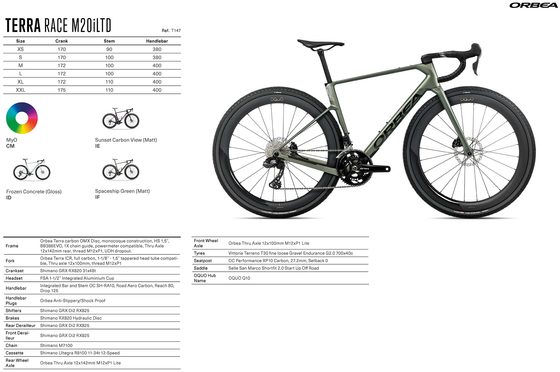

SPECIFICATIONS
FRAMESET
FRAME - Orbea Terra carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout.
FORK - Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
STEERER TUBE - FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
CRANKSET - Shimano GRX RX820 31x48t
SHIFTERS - Shimano GRX Di2 RX825
CASSETTE - Shimano Ultegra R8100 11-34t 12-Speed
REAR DERAILLEUR - Shimano GRX Di2 RX825
FRONT DERAILLEUR - Shimano GRX Di2 RX825
CHAIN - Shimano M7100
COCKPIT
HANDLEBAR - Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
Options - OC RA11 Carbon Handlebar + RP10 Stem
- OC GR10 Carbon Handlebar + RP11 Stem
BRAKES
BRAKES - Shimano RX820 Hydraulic Disc
WHEELS
WHEELS - OQUO Road Performance RP50LTD
Options - OQUO Road Control RC30 TEAM
TIRES - Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
FRONT WHEEL AXLE - Orbea Thru Axle 12x100mm M12x2 P1 Lite
REAR WHEEL AXLE - Orbea Thru Axle 12x142mm M12x2 P1 Lite
COMPONENTS
SEATPOST - OC Performance XP10 Carbon, 27.2mm, Setback 0
Options - OC Performance XP10-S Carbon, Setback 20
SADDLE - Selle San Marco Shortfit 2.0 Start Up Off Road
Options - Fizik Vento Antares R1 Carbon Rail 140mm
ACCESSORIES
HANDLEBAR TAPE - Orbea Anti-Slippery/Shock Proof
HUB
OQUO HUB - OQUO Q10
We reserve the right to make changes to the product and component information appearing on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.
GRAVEL UNLEASHED
Feel the wind as you charge through the chaos. The rush of untamed speed, the precision in every twist. The world blurs, and all that matters is the challenge of the moment. No distractions. Just the race.
Terra Race’s light and responsive OMX carbon frame and race-tuned geometry deliver serious performance. Everywhere. Stiff and efficient, every pedal stroke is converted into explosive acceleration. Whether you're chasing the podium or pushing your own limits, Terra Race is built to put you ahead of the pack and keep you there.
Built For Speed
Built to deliver speed with every pedal stroke — light where it counts, aero, and just compliant enough to stay sharp when things get gritty.
Lightest, strongest, OMX carbon
Speed starts with OMX: our lightest, stiffest carbon layup. By using fewer pieces and taking more time on each frame to reduce overlap, we are able to save 300 g without losing rigidity. 300 grams that mark the difference in competition.
Frame weight without hardware, unpainted: 910 g
OMX Carbon Fork
Optimised for stiffness and exact handling, the Terra OMX carbon fork fits 45C tyres with 7 mm of lateral clearance.
Fork weight without hardware, unpainted: 425 g
This is Gravel, just faster.
With ingenuity, aerodynamic advantages can be devised throughout the bike's design: an integrated cockpit and deep-section wheels have a major impact, and even the smallest details add up.
Internal Seatpost Clamp
Discreet and aerodynamic, the internal clamp system — inspired by Orca — keeps the lines clean and drag low, with hassle-free adjustment.
Vibration Damping Rear Triangle
Shaped for speed on rough ground, the rear triangle smooths out vibrations and keeps the rear wheel planted for maximum traction when the pace gets punchy.
Maximized Efficiency
Efficiency starts with race-tuned geometry and a stiff, reactive frame that channels power instantly, turning every effort into acceleration.
Gravel Racing Geometry
A much more aero position comes from Gravel Racing Geometry. Inspired by Orca, reimagined for gravel for all-out speed on unpredictable terrain:
Lower stack and longer reach for a more aerodynamic, race-tuned position
BB height and wheelbase optimised for high-speed stability in deep gravel
Size-specific fork trail for consistent handling across the size range
Power and Precision in Every Frame
Engineered for rigidity where it counts and power transfer you can feel. From our cutting-edge OMX carbon layup to size-tuned stiffness, every detail is refined to make you faster.
Stiff in All the Right Places
At just 910 g for the frame and 425 g for the fork, with frame stiffness measured at 90–95 Nm/°, Terra Race delivers efficiency and razor-sharp handling under pressure.
Intentional Design
Every detail of the frame is engineered with purpose. From just-right tyre clearance for racing, to UDH compatibility, to the flexibility of 1x or 2x setups: it’s all built in to keep you rolling fast.
Just Right Tyre Clearance
Tyre clearance up to 45C gives you the freedom to run wider, faster-rolling setups — perfect for racing over rough terrain without sacrificing speed.
UDH Compatible
Universal Derailleur Hanger compatibility ensures wide drivetrain versatility and simple replacements — keeping your setup smooth, secure, and ready for whatever comes next.
Drivetrain Versatility
Ride 1x or 2x — the frame is built to perform with either setup, giving you the flexibility to choose the optimal drivetrain for whatever the race demands.
Performance-driven Adaptability
Dial in every detail – fit, wheels, components – for peak speed and race-ready precision.
Premium Components
OQUO RP50LTD wheels
Carbon wheels with great aerodynamics from a 50 mm profile and compliance for rougher surfaces with a wider internal rim width. Strong and reliable to match demanding race needs.
OC Components
Choose the OC SH-RA10 Aero Cockpit for benchmark aerodynamics and ultra-low weight — with fully internal routing, ergonomic tops for wrist comfort, sprint-ready stiffness, and a tilt-adjustable computer mount.
Ergonomics That Fit You
Choose an integrated cockpit or gravel flared bars, plus options for bar width or height- like our 15 mm riser, stem length, crank size. Get the fit you need for comfort and control at race pace.
